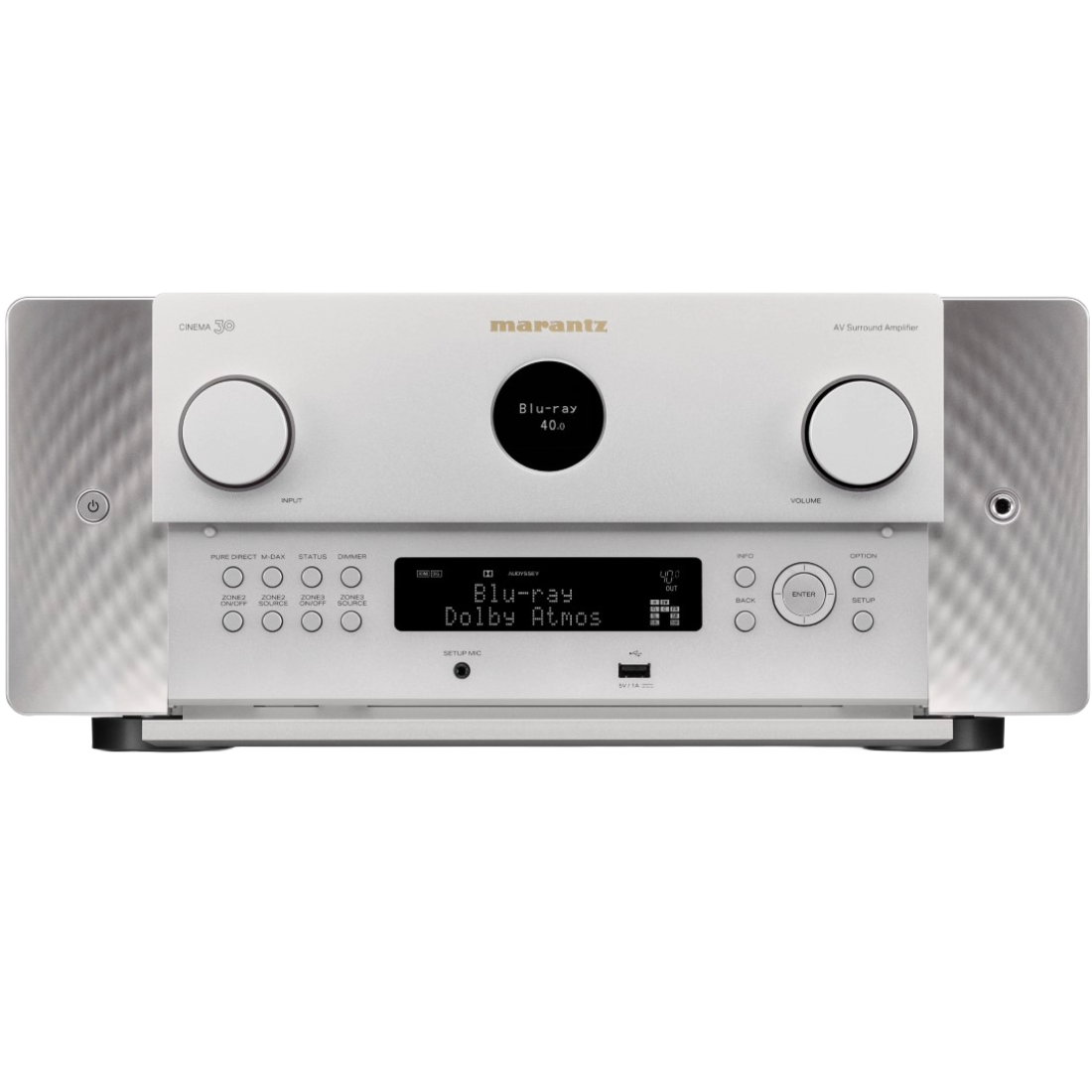

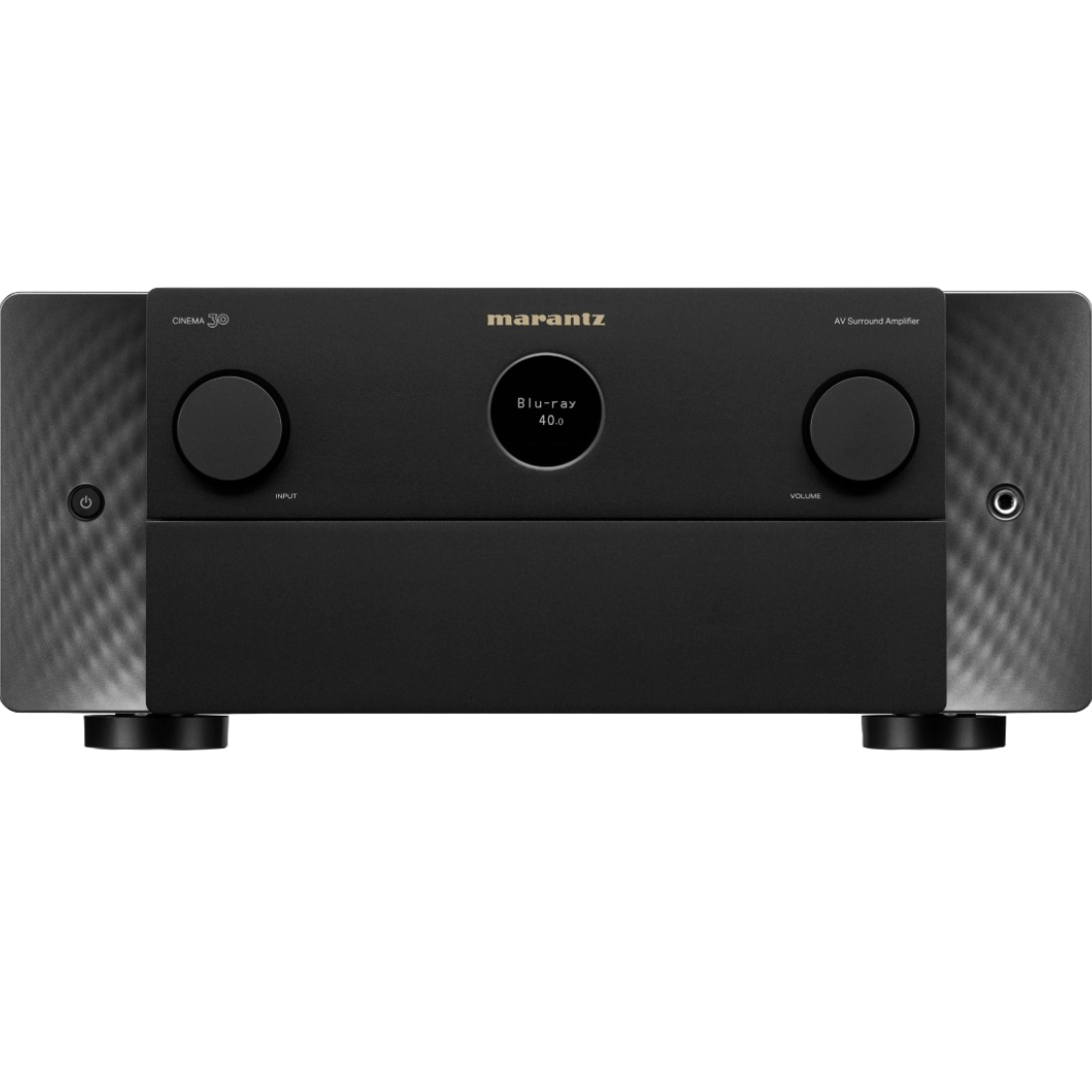

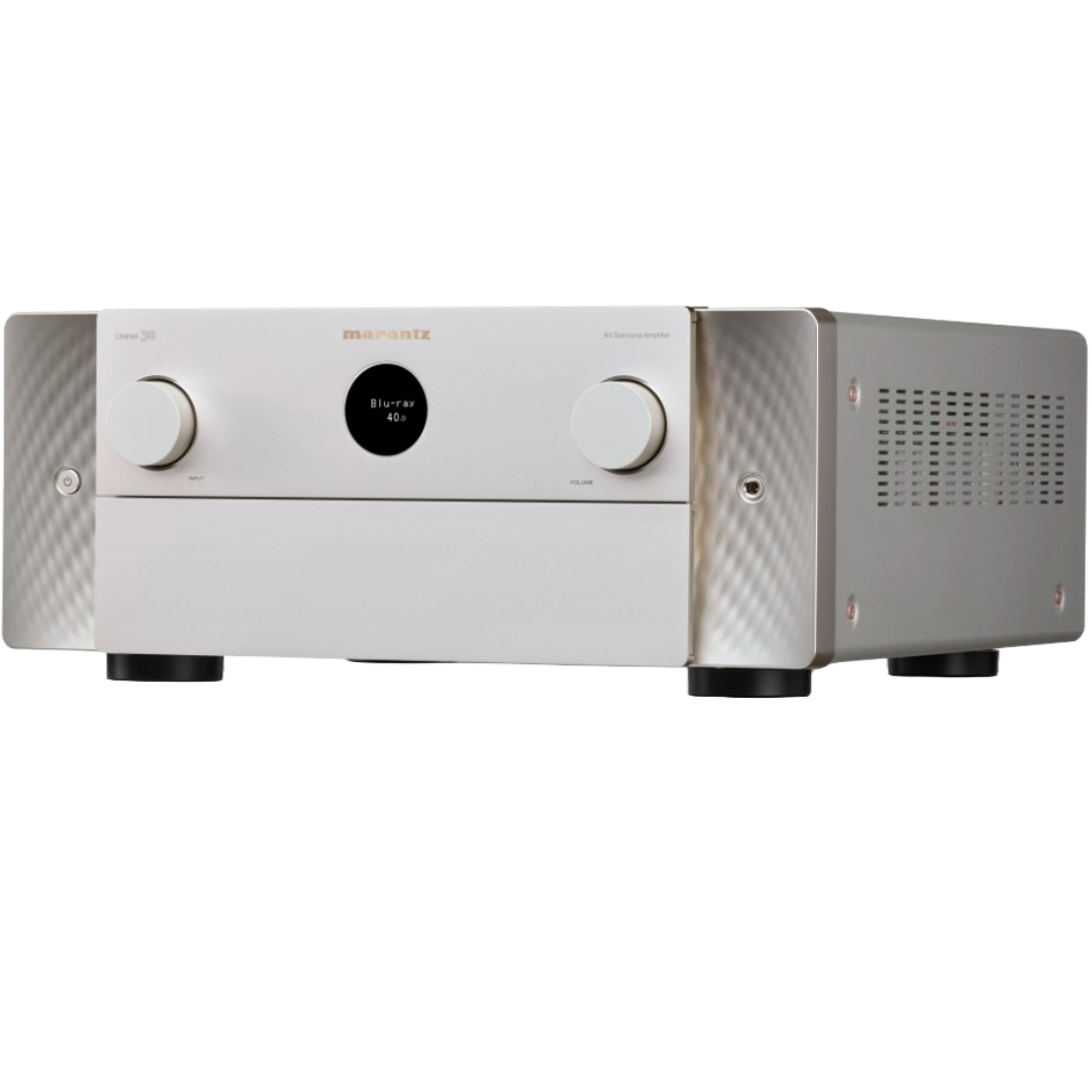

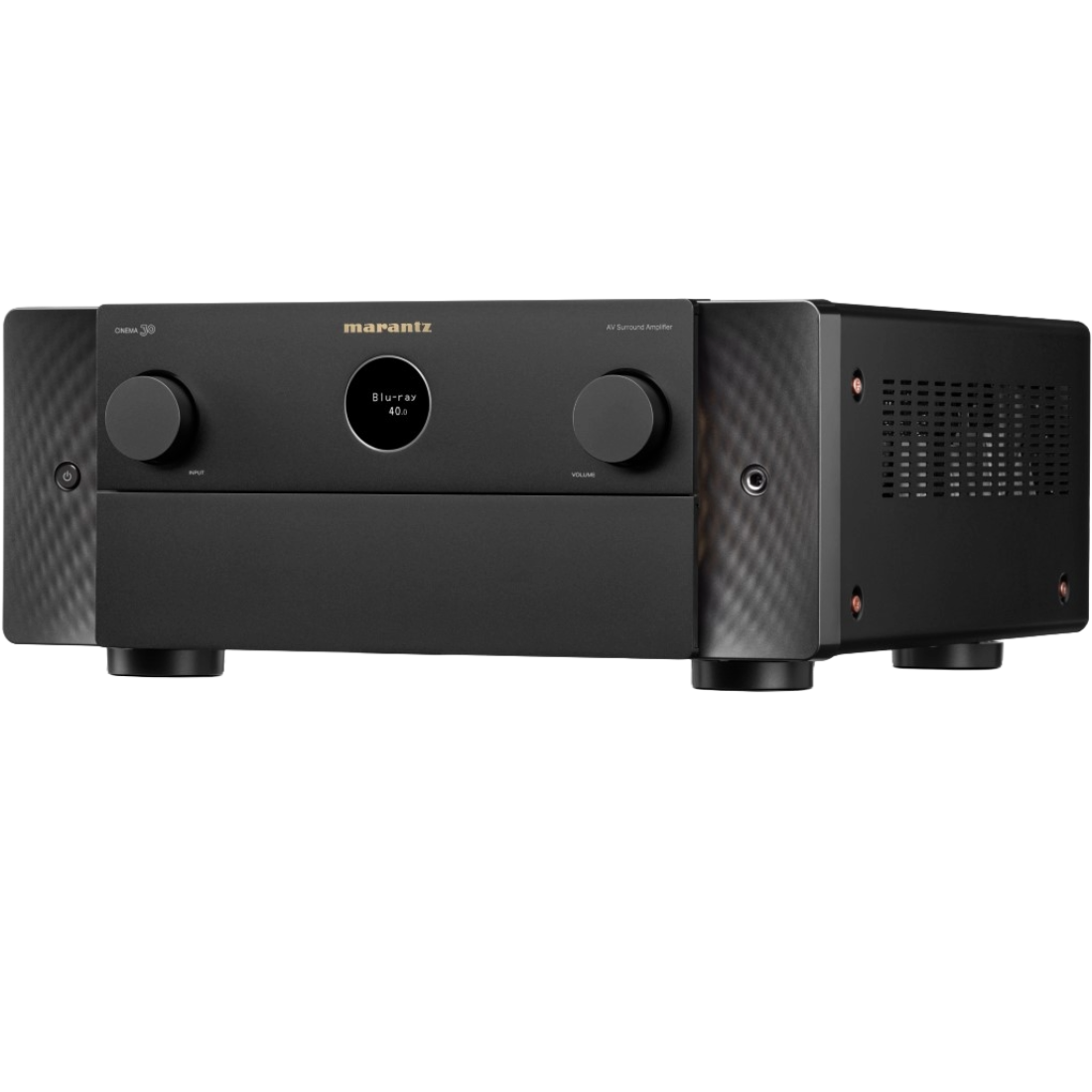

Marantz Cinema 30 AV Receiver

Engineered with proprietary technology and crafted with premium materials for timeless style, CINEMA 30 redefines cinematic sound for superior home theater systems.

• Crafted in Shirakawa, Japan
• 11.4 Channels
• 140 Watts per Channel
• 7 HDMI Inputs plus eARC
• 8K & Dolby Atmos
• HEOS Built-in

Power Amplifier

• Number of Powered Channels:11
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): -
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 140 W
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 175 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 250 W
• 70% Guarantee: Yes
• Discrete Power Amplifier: Yes
• Amplifier Topology: Class A/B
• Current Feedback Topology: yes
• Bi-Amp Drive: assignable

Multichannel Surround Technologies

• DTS: DTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual:X
• Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music: Dolby Surround

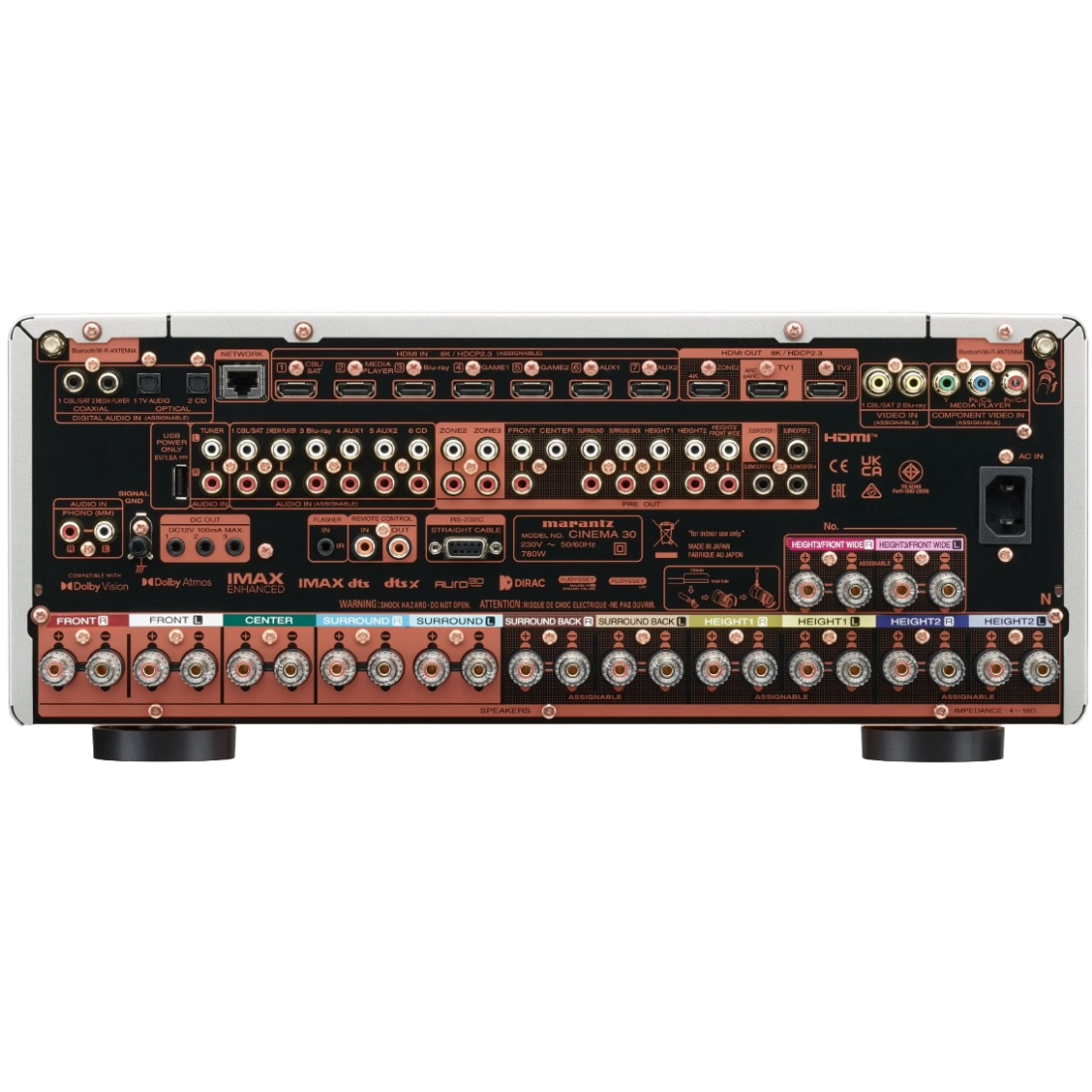

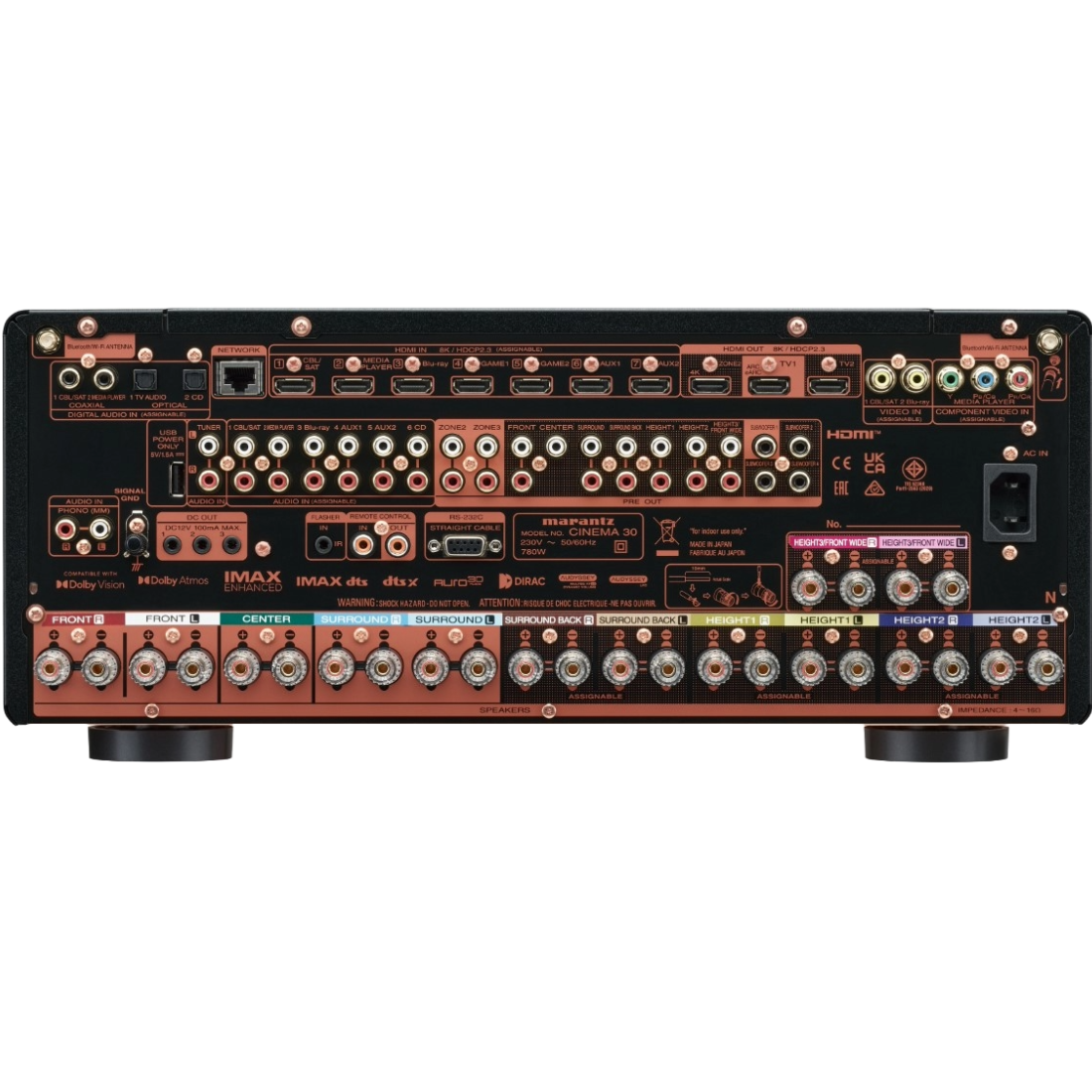

Inputs Outputs

• Composite In / Out: 2 / 0
• Component In / Out: 1 / 0
• HDMI In / Out: 7 / 3
• Multi-Room Video Out via HDMI: 0 / 0
• Analog In / Fixed Level Out: 3 in / 0 out
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: analog / digital: 2 / 0
• Multichannel Preamp Out: 7.2
• Subwoofer Out: 4 (independent)
• 7.1 multichannel input: No
• Number of Speaker Terminals: 13
• Speaker A / B: assignable
• Multi-Room Speaker Terminal: assignable
• Front Inputs: USB-A
• USB Audio: Yes / No / No
• FM Tuner with RDS: Yes
• DAB+ Tuner: No
• Multi-Room Video Out: Video / HDMI: 7/3
• analog In/out: 6 / 0
• Multichannel Pre Out: Yes (13.4)
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes

HDMI

• Total HDMI Inputs / No. Support 8K: 6 / 3
• HDCP2.3 support: Yes
• HDMI Outputs: Main / Zone: 2 / 1
• Analog to HDMI Video Conversion: No
• HDMI Upscaling: 1080P/4K to 8K
• Max resolution @ framerate
• Audio Return Channel: ARC, eARC
• Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
• Variable Refresh Rate / Quick Frame Transport: Yes / Yes / No
• HDMI Pass-Through in Standby Mode: Yes
• CEC: Yes
• DSD Audio over HDMI: No
• Auto LipSync: Yes
• HDMI Inputs: Back / Front: 7 / -
• Video Conversion Analog -> HDMI: Yes
• HDMI to HDMI Scaling: 1080P/4K to 8K
• HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes / Yes
• 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: 7 / 2 (up to 40Gbps)
• HDMI 2.0: 3D / 4K / CEC / ARC: Yes / Yes / Yes / Yes
• HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes / Yes / Yes / Yes / Yes
• Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes / Yes / No
• 8K signal pass-through / scaling / GUI overlay: o / o / o
• 4K Signal Pass-Through / Scaling / GUI Overlay: o / o / o
• DSD Audio Capability: Yes

Smart Home Integration and Control

• Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple Home Pod
• App for Smart Phones & Tablets (iOS & Android): Marantz AVR App
• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/ IP: Yes /Yes
• Multi-Room zones: 2
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2 Ch / Yes / Yes
• Zone Audio Output: Speaker / Preout: Yes / Yes
• Zone HDMI Output from HDMI Source: Yes
• Control Connectivity: IP Control / RS232 Control / Web Control / App Control
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 3
• HDMI Diagnostics: Yes
