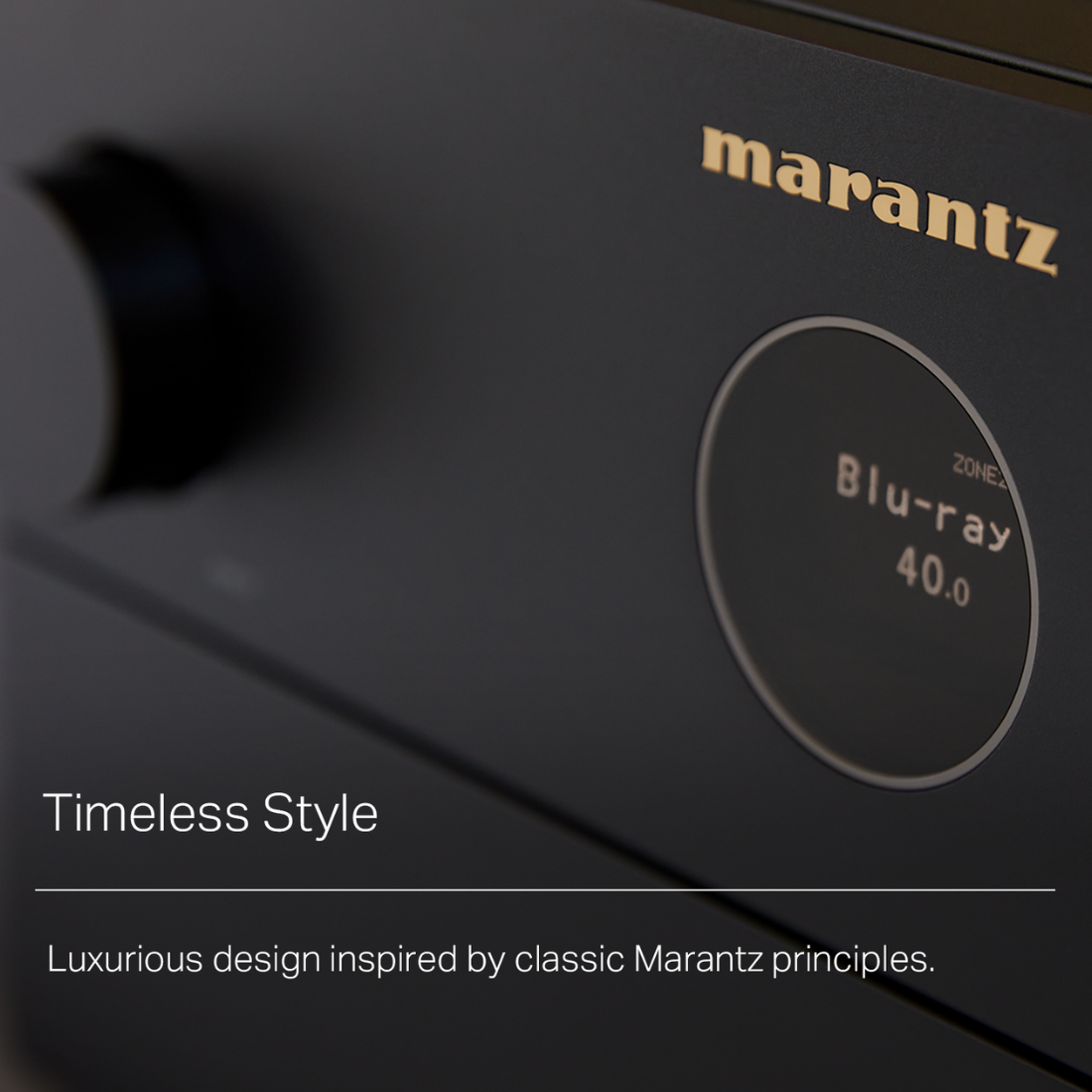

Marantz Cinema 40 AV Receiver

Premium 9.4 channel 125-watts-per-channel amplification, Dolby Atmos, DTS:X Auro 3D, and 8K Ultra HD plus HEOS® Built-in streaming. CINEMA 40 is a statement piece and reference level A/V Receiver.

• Crafted in Shirakawa, Japan
• 9.4 Channels
• 125 Watts per Channel
• 7 HDMI Inputs plus eARC
• 8K & Dolby Atmos
• HEOS Built-in

Power Amplifier

• Number of Powered Channels: 9
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive)
• Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive): 125 W
• Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 165 W
• Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 235 W
• 70% Guarantee: Yes
• Discrete Power Amplifier: Yes
• Amplifier Topology: Class A/B
• Current Feedback Topology: Yes
• Bi-Amp Drive: assignable

Multichannel Surround Technologies

• DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
• Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
• Other: IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Audyssey DSX, Multichannel Stereo 2
• Max Number of Processing (Preamp) Channels: 11.4

Inputs Outputs

• Composite In / Out: 2 / 0
• Component In / Out: 1 / 0
• HDMI In / Out: 7 / 3
• Multi-Room Video Out via HDMI: Yes
• Analog In / Fixed Level Out: 5 in / 0 out
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: analog / digital: 2 / 0
• Multichannel Preamp Out: 11.4
• Subwoofer Out: 4 (independent)
• 7.1 multichannel input: No
• Number of Speaker Terminals: 11
• Speaker A / B: assignable
• Multi-Room Speaker Terminal: assignable
• Front Inputs: USB-A
• USB Audio / Made for iPod / Made for iPhone: Yes / No / No
• AM/FM Tuner: Yes

HDMI

• Total HDMI Inputs / No. Support 8K: 7 / 7
• HDCP2.3 support: Yes
• HDMI Outputs: Main / Zone: 2 / 1
• Analog to HDMI Video Conversion: Yes
• HDMI Upscaling: 1080P/4K to 8K
• Max resolution @ framerate: 8K @ 60Hz, 4K @ 120Hz
• Audio Return Channel: ARC, eARC
• Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
• ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
• Variable Refresh Rate / Quick Frame Transport: Yes / Yes
• HDMI Pass-Through in Standby Mode: Yes
• CEC: Yes
• DSD Audio over HDMI: Yes
• Auto LipSync: Yes

Smart Home Integration and Control

• Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
• App for Smart Phones & Tablets (iOS & Android): Marantz AVR Remote App, HEOS
• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR/ IP: Yes / Yes
• Multi-Room zones: 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2 Ch / Yes / Yes
• Zone Audio Output: Speaker / Preout: Yes / Yes
• Zone HDMI Output from HDMI Source: Yes
• Control Connectivity: IP Control / RS232 Control / Web Control / App Control
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 3
• HDMI Diagnostics: Yes
